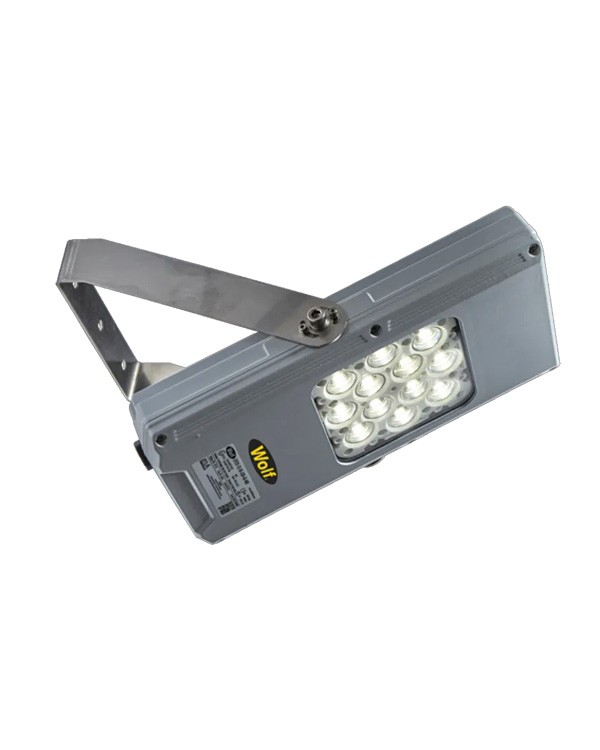

The Wolf LFX1 LED Floodlite is an ultra-durable, high-performance ex-proof projector designed to meet both fixed and temporary lighting requirements in hazardous locations. Offered by IST Safety Ltd, the official distributor of Wolf, this model serves as one of the most efficient LED alternatives to traditional halogen lamps, combining a compact structure with low energy consumption.
Certified for Zone 1/21, the LFX1 delivers a powerful and uniform output of 2,150 lumens. With its highly impact-resistant aluminum body, toughened glass lens, and IP66/67 ingress protection rating, it maintains peak performance even under the harshest industrial conditions. Its "light for life" LED technology minimizes maintenance costs while maximizing operational safety.
|
PRODUCT REFERENCE |
LFX1S-12-55 |
LFX1S-12-65 |
LFX1S-16-45 |
LFX1S-16-55 |
|
CODE |
II 2 G D Ex eb mb IIC T4 Gb Ex tb IIIC T110 °C Db |
|||
|
CERTIFICATION |
ExVeritas 19 ATEX 0586X IECEx EXV 19.0079X ExVeritas 21 UKEX 0939X |
|||
|
Input Voltage Range |
88 - 140V AC; 180 - 277 VAC |
|||
|
Input Power |
67.5W |
45W |
90W |
60W |
|
Frequency |
50 - 60 Hz |
|||
|
Power Factor |
>0.90 |
>0.90 |
>0.95 |
>0.95 |
|
Enclosure Size |
Small |
|||
|
Lumen Output (Max)* |
9,724 |
6,483 |
12,996 |
8,644 |
|
LEDs |
12 LED |
12 LED |
16 LED |
16 LED |
|
Beam Angles |
Narrow (36°), Medium (45°), Wide (62°), Ultra Wide (102°) |
|||
|
Ingress Protection |
IP66/IP67*** |
|||
|
Gas Temp. Class |
T4 |
|||
|
Weight |
9.5kg |
|||
|
Colour Temperature |
5000K |
|||
What is ATEX and what does exproof mean? The ATEX directive is a set of European Union standards that define the safety requirements for equipment used in hazardous areas with explosive atmospheres. Exproof (Explosion-proof) refers to protection methods designed to prevent explosions by inhibiting the formation of sparks or electrical arcs in environments containing flammable gases, dust, or vapors. To ensure life and property safety in industrial facilities, the use of ATEX-certified exproof devices is a legal requirement.
ATEX Zone coding is a technical classification based on the frequency and duration of the occurrence of an explosive atmosphere in a given area. While the terms Zone 0, 1, and 2 are used for risks originating from gas, vapor, and mist; the codes Zone 20, 21, and 22 are designated for environments containing combustible dust. This classification is a legal standard that determines the required Equipment Protection Level (EPL) for devices. Accurate zone identification both optimizes operational costs and minimizes occupational safety risks.
In addition to ATEX certification, some projects may also require the IECEx Certification System (International Electrotechnical Commission Explosive Atmospheres System) certification. IECEx is an internationally recognized conformity assessment system for equipment intended for use in explosive atmospheres.
While ATEX is a European Union directive and a legal requirement within the European market, IECEx is a globally accepted certification system, widely preferred in regions such as the Middle East, Asia, and Australia.
From a technical perspective, both ATEX and IECEx are based on similar standards (e.g., the EN/IEC 60079 series). However:
Therefore, while ATEX certification may be sufficient for certain projects, international tenders or critical industries such as oil & gas often prefer or require products that are certified to both ATEX and IECEx standards.
The appropriate certification should be determined based on the project location, client requirements, and application area.
