(OUTDOOR USE FOR COLD CLIMATES)
Â
P/N : 15026100 / 15036100 (Stainless Steel)
P/N : 15026150 / 15036150 (Galvanized Steel)
Â

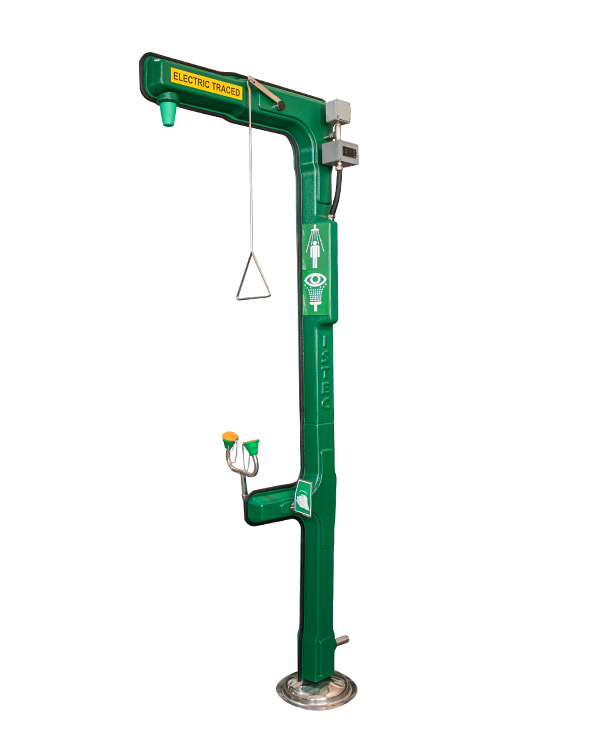

Protective against Freezing with cable heating (10-15 W/m, AC 230 V, Ex-Proof) and complete insulating system Suitable for extreme cold weather conditions Green color is standard. Beige and black color is available.

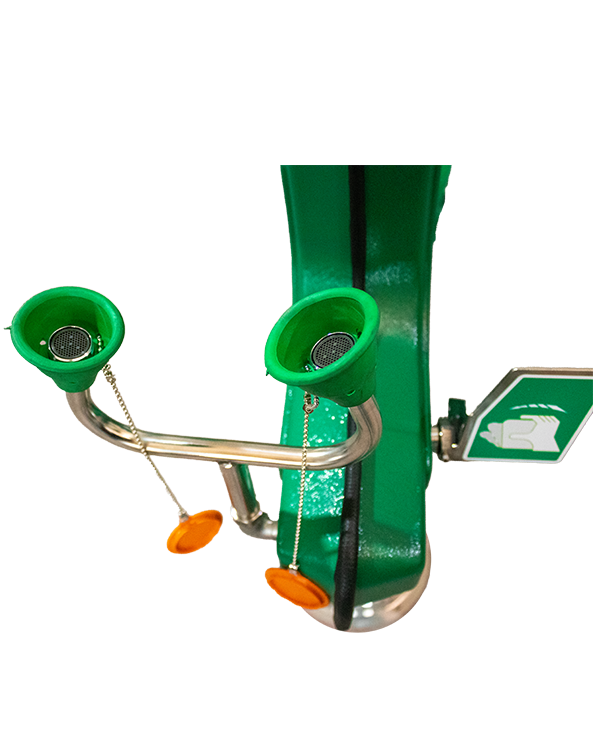

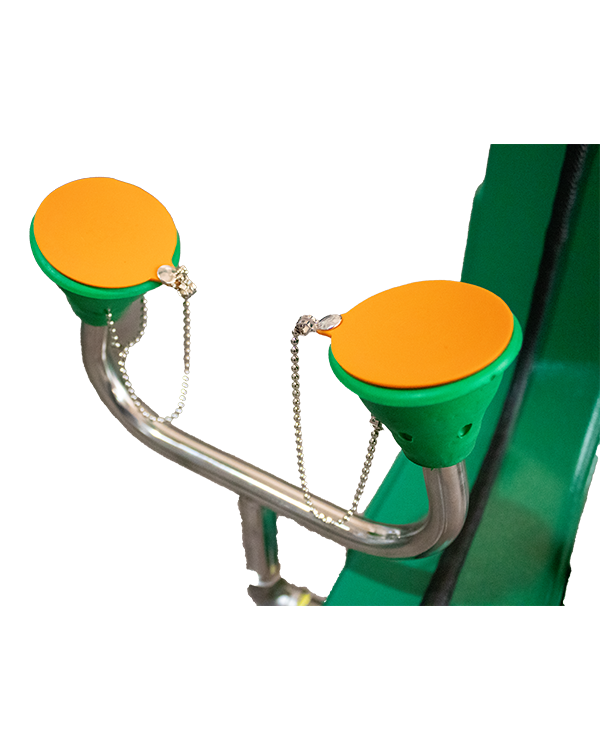

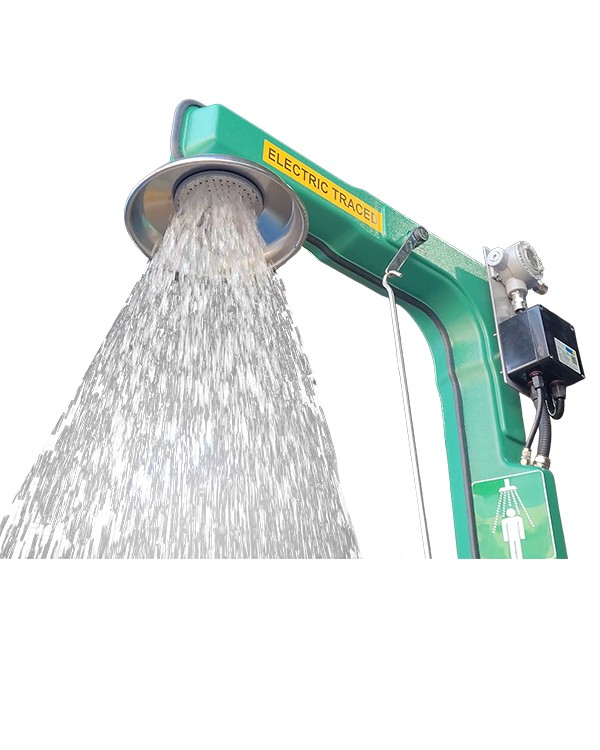

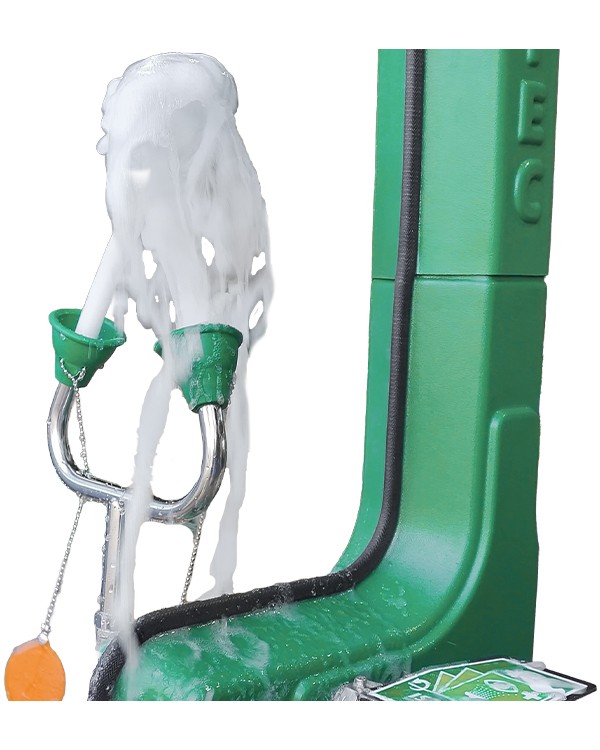

Push Handle Control for Eyewash, Pull Rod Control for Shower
Available for hazardous and non-hazardous areas
10-15 W/m, AC 230 V, Ex-Proof Cable Heating with Insulation for freeze protection Â
Â
Shower Material                 : 304 Stainless Steel or Galvanized Steel
Pipes                          : 1 1/4'' Stainless Steel or Galvanized Steel
Shower Head and Eyewash Bowl :Â 300 mm diameter, Stainless Steel or Galvanized SteelÂ
Water Inlet                      : 1''
Water Outlet                    : 1 1/4 ''
Water Flow                     : Minimum 11.4 lt/min for eyewashÂ
                               Minimum 75.7 lt/min for shower
Â
OPTIONS
- Ex-proof Mechanical Thermostat
- Ex-proof or non Ex-proof Audible and Visual AlarmÂ
- Scald Protection ValveÂ
- Shower activation PlatformÂ
- Eyewash Foot Treadle
- Overhead ABS shower Rose
- 316 Stainless Steel Shower Material
- Flow Switch Â
