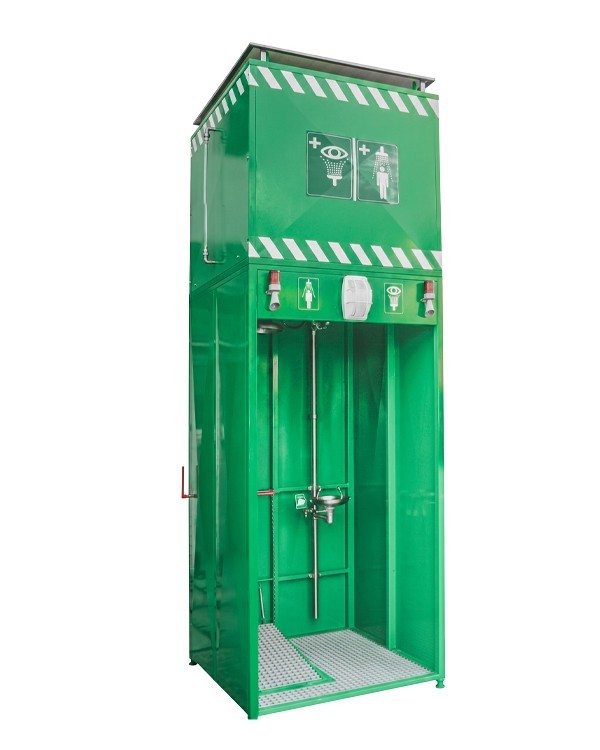

Standard 630/1620 lt Overhead Tank Showers supply 15 minutes flow rate according to the standard requirements on the condition of being connected to mains supply.
Different materials (Galvanized Steel, Stainless Steel, GRP) can be used in diffrent system parts as optionally. You can customize your tank shower system by selection guide to integrate the system by choosen desired accessories and various system parts.
Water Tanks are insulated. An integral immersion heater or a chiller unit can be added to the system with the options of ex-proof and non ex-proof, in order to keep the water temperature constant between 15-38 °C. Heating and cooling capacities may be changed according to customer requirements.
Build and design your emergency tank showers in 3D according to the required climate & area classification!
Search “Safety Shower Builder” on Apple App Store or click on the link below and stay connected!
https://apps.apple.com/tr/app/safety-shower-builder/id1536803797?l=tr
Standard 630/1260 lt Overhead Tank Showers supply 15 minutes flow rate according to the standard requirements on the condition of being connected to mains supply.
Different materials (Galvanized Steel, Stainless Steel, GRP) can be used in diffrent system parts as optionally.
You can customize your tank shower system by selection guide to integrate the system by choosen desired accessories and various system parts.
Water Tanks are insulated.
An integral immersion heater or a chiller unit can be added to the system with the options of ex-proof and non ex-proof, in order to keep the water temperature constant between 15-38 °C.
Heating and cooling capacities may be changed according to customer requirements.
Shower Head : 300 mm diameter
Eyewash Bowl : 300 mm diameter
Water Inlet : 1 ½” with flange
Water Outlet : 1 ¼”
Water Flow : Minimum 11,4 lt/min for eyewash
Minimum 75,7 lt/min for shower
Available in green, yellow or white color
OPTIONS
- Ex-proof Or Non Ex-proof Audible And Visual Alarm
- Ex-proof Or Non Ex-proof chiller cooling unit (for hot climates)
- Water Immersion Heather (for cold climates)
- Scald Or Freeze Protection Valve
- Testing Lever
- Eyebath Foot Treadle
- Overhead ABS Shower Rose
- 316 Stainless Steel Shower Material
- Overhead Sun Canopy
- Low Water Level Alarm
- Side & Rear Panelling
- Spring Loaded Doors
- Visual Water Level Indicator
- Visual Water Temperature Gauge
- Water Low And High Tempature Alarm
- Drain Sump and Grating
- Internal or External lighting
- Shower activation platform
- Eyewash may be located internally on LHS or RHS or externally
- LHS or RHS when wieved in front
- Ex-proof space heater
- Ex-proof or non ex-proof flow switch
- Pressure regulator
- Stainless steel erecting lugs
- Thermo mixing valve
- Wooden Pallets
- M20 Electrical Box
- Side and rear panels insulation / Water Tank insulation
- Panic Bar / Push Bar
- Platform Activation
