In accordance with EN 15154-1-2 and ANSI Z358.1-2009
For outdoor applications
Options for hazardous and non-hazardous areas
Applicable for ambient temperatures of - 40 °C / + 55 °C

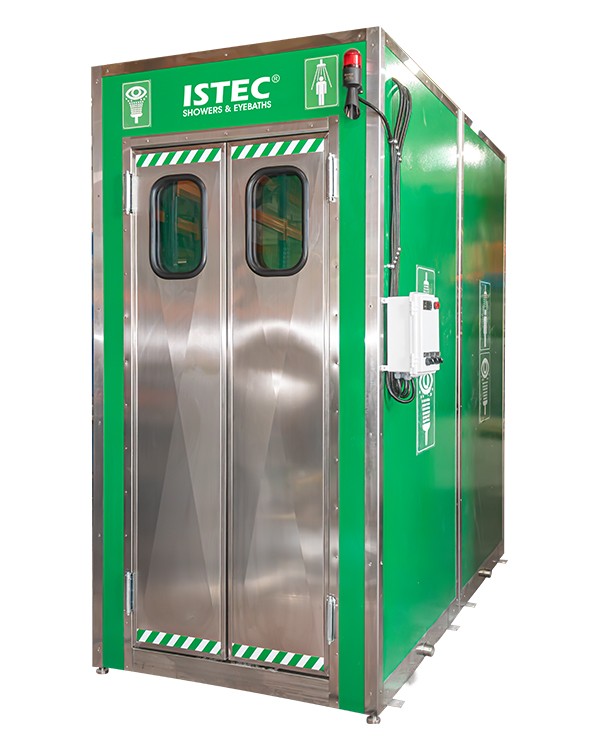

Insulated Cubicle (50 mm Polyuretane)
Space Heater
Spring activated doors
Produced from galvanized steel as standard (Optionally 304 stainless steel, 316 stainless steel or GRP material)
Mains Water System is recommended as 2-3 bars
GRP Grating non slipping floor
Testing lever
Integrated drain sump
Shower Head : 300 mm diameter
Eyewash Bowl : 300 mm diameter
Water Inlet : 1 ½” with flange
Water Outlet : 1 ¼”
Water Flow : Minimum 11,4 lt/min for eyewash
Minimum 75,7 lt/min for shower
OPTIONS
- Ex-proof Or Non Ex-proof Audible And Visual Alarm
- Eyewash may be located internally on LHS or RHS or externally LHS or RHS when wieved in front
- Eyewash foot treatle
- Water inlet with flange connection
- Internal or External lighting
- Low water level alarm
- Spring loaded doors
- Curtain
- Cable heating
- Wooden Pallets
- Panic Bar / Push Bar
- Platform Activation
- Drain Sump and Grating
- Overhead ABS Shower Rose
- Scald Or Freeze Protection Valve
- Stainless steel erecting lugs
- Ex-proof or non ex-proof flow switch
